ANSCHUTZ RATE OF TURN SYSTEM
RATE-OF-TURN SYSTEM AND INDICATORS

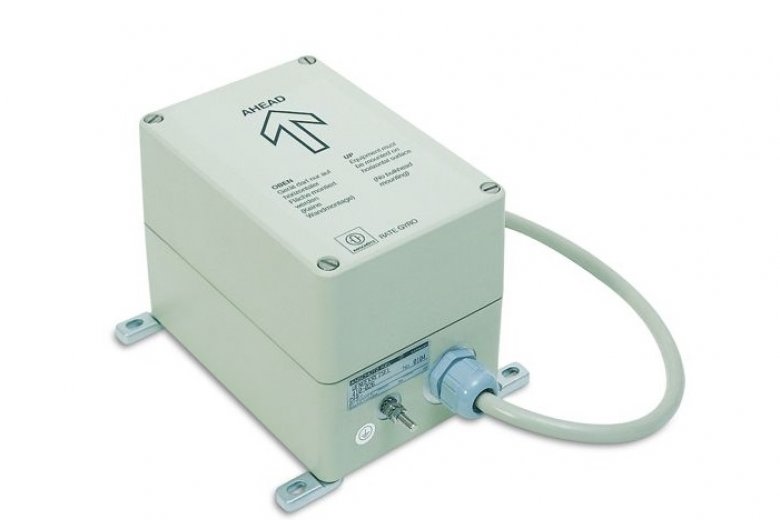

The rate gyro is an aid for steering and manoeuvring of seagoing vessels.
The gyro element is a component of the well-proven Anschütz gyro technology and thus a guarantee for reliability, precision and long life; developed for round-the-clock operation.
The use of the most modern microprocessor technology for internal process and signal treatment makes the rate-of-turn indicator an intelligent, selfmonitoring sensor which can be integrated very flexibly into sophisticated navigation systems. The operator- and indicator unit with either 30°/min, 100°/min or 300°/min scale can be supplied for flush mounting or with a casing and tiltable bracket for desktop mounting.
- Robust, reliable sensor based on a professional gyro system
- Simple installation on board
- Operating surface of the operator- and indicator unit in modern soft key technique
- Microprocessor-controlled data processing and -output
- Galvanic separation from ship’s mains with protection against reversal of poles
- Variable outputs for radar, riverpilot and RoT- and data processing periphery
- Integrated monitoring, test- and damping functions
- Ready for installation, free of maintenance
- Future application assured by fulfilment of the following rules:
– BSH: Type approval rules for rate-of-turn indicator equipment
– IMO: Resolution A.526 (13)

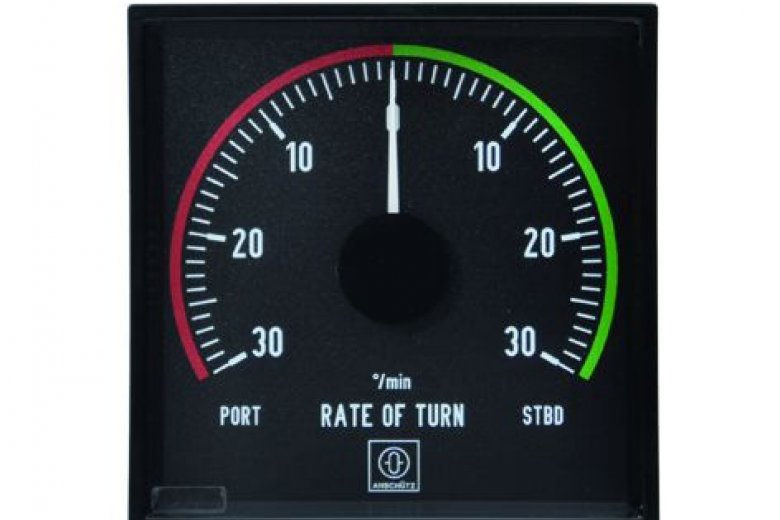

ROT INDICATOR FLUSH MTG. +/- 30° 144X144 MM IP 22

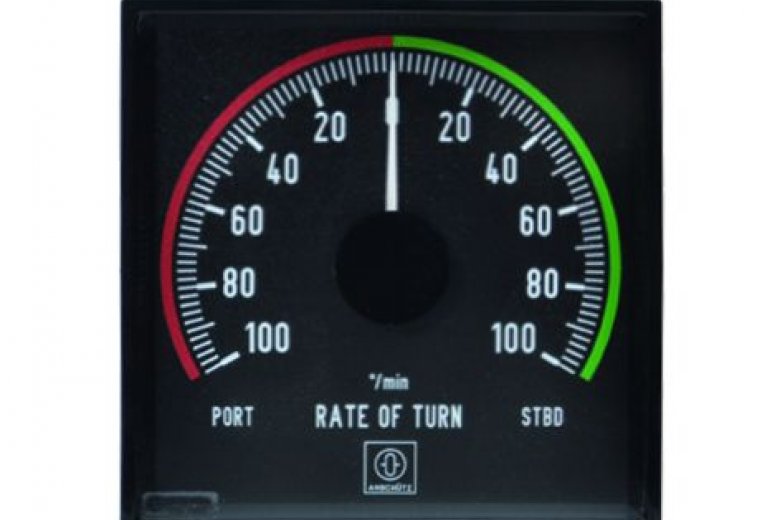

ROT INDICATOR FLUSH MTG. +/- 100° 144X144 MM IP 22

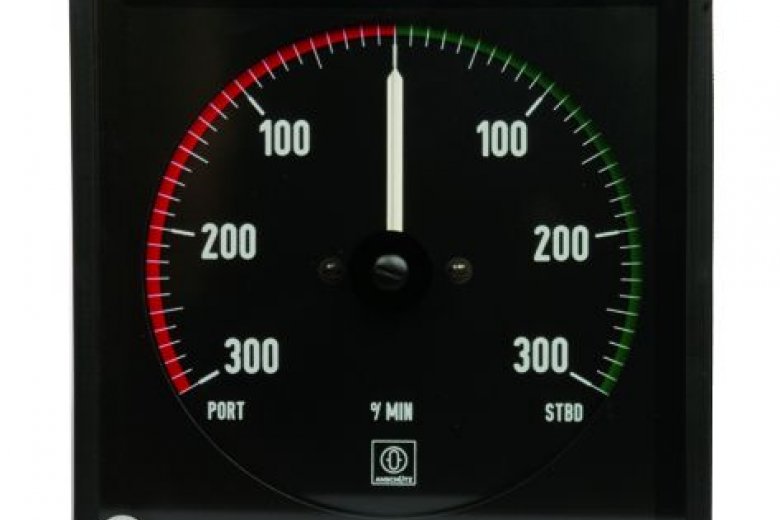

ROT INDICATOR FLUSH MTG. +/- 300° 144X144 MM IP 22
