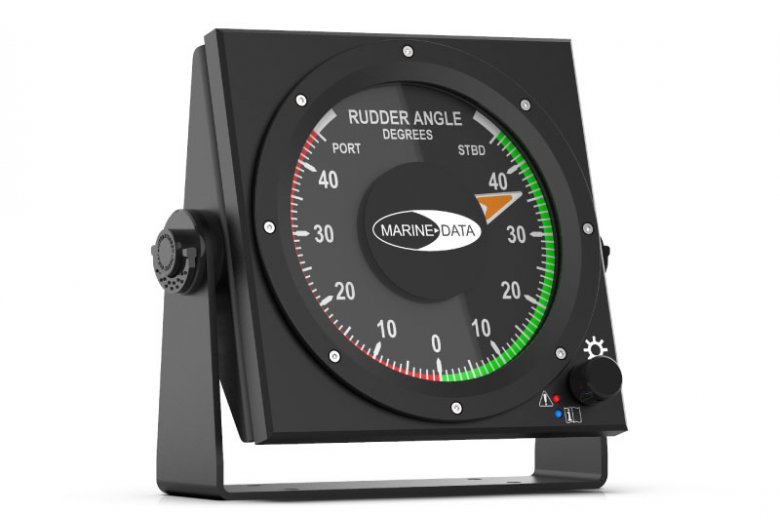

MD67RDI WEATHERPROOF DIAL RUDDER ANGLE INDICATOR
OVERVIEW
The MD67RDI is a weatherproof, NMEA-based Rudder Angle Indicator. Housed in a robust, compact aluminium enclosure which is fully sealed to IEC 60945 Exposed Area Classification for external or internal use, and is ideal for any vessel.
The MD67RDI provides a clear and easy to read 118 mm diameter analogue display graduated in 1 degree increments. Rudder deflection range: Up to 40 degrees to Port and Starboard. It features a tough polycarbonate faceplate and a rotary encoder control for varying the background and pointer illumination.
This unit may be either bulkhead or panel mounted. Finished in Jet Black (RAL 9005) Fine-texture Powder Coat to complement other marine navigation equipment.
The MD67RDI from Marine Data: flexible in application, easy to install and simple to maintain.
FEATURES
- Weatherproof Marinised Rudder Angle Indicator
- Clear and Easily Readable Dial Display
- Displays Rudder Angle up to 40° Port and Starboard
- Accepts Digital RS422 NMEA 0183 (RSA) data from a Rudder Angle Transmitter
- Bulkhead or Panel Mount Options
- Rotary Dimmer with Push Control
- Fully sealed to IEC 60945 Exposed Area Classification
- Wheelmark Approved when installed as part of a Marine Data Rudder Angle Indication System
APPLICATIONS
- External use on a seagoing vessel
- Used to display RSA Rudder Sensor Angle Data transmitted from marine equipment compatible with the NMEA 0183 data protocol
- Two units may be used to display dual rudder positions
