Radar Signal Converter Cabinet (RSCC)
A versatile Analog Signal Converter and Distribution Node

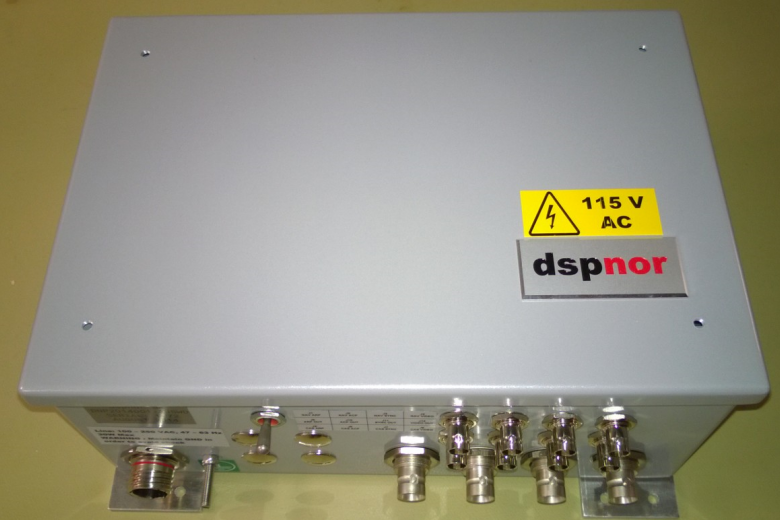

The RSCC consists of a Programmable Radar Interface Board,
a high quality power supply and a supply filter installed in an EMI / EMC improved enclosure. The standard enclosure offering is:
- DNE2xx Aluminum Wall Mount Enclosure, 300 x 210 x 120 mm.

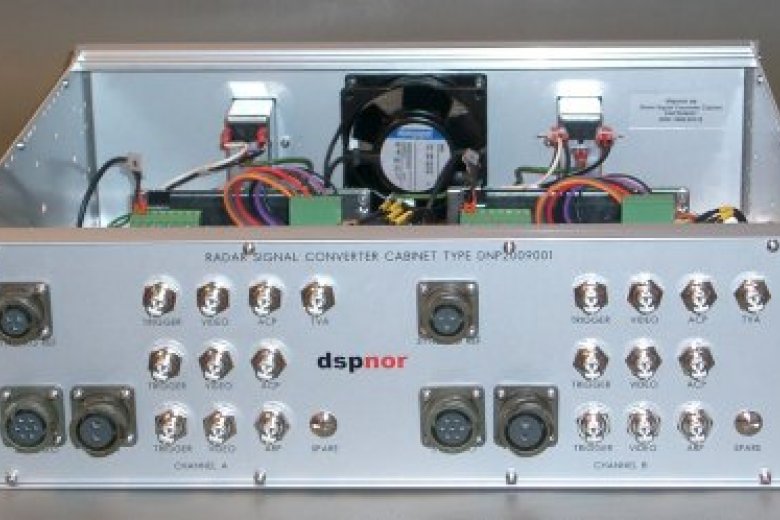

- DNE6xx Aluminum 19″ Rack Enclosure, 2U or 3U.
The RSCC in DNE2xx enclosure is compliant with EN60945 : 1997.
Further, the RSCC has undergone additional vibration and shock testing in order to qualify for hardmount on military vessels. Please see video at the bottom.
The video and trigger signals are normally terminated outside the chassis using BNC plugs while the other signals are terminated directly on the PRIB using EMC cable glands (Normally PG 9).
Ordering Information
| Product Code | Description |
| DNP2002001 | RSCC Base configuration |
| DNP2008010 | Pre-Trigger Combiner for EW and Radar Beacons (6:1). Generates one Blanking Pulse similar to AN/SLA-10B Blanker-Video Mixer Group |
| DNP2009001 | Dual SAM/Atlas to Synchro Converter |
| DNP2009012 | Berger Synchro converter. Replaced by DNP2011005 |
| DNP2011001 | Radar Signal Distribution |
| DNP2011005 | Radar Signal Converter |
| DNP2014001 | Rugged Video Distribution Enclosure |
| DNP2021020 | Pre-Trigger / Blanking Pulse for Solid State Navigation Radars |
| DNP2021021 | NMEA to Doppler Log Converter |
