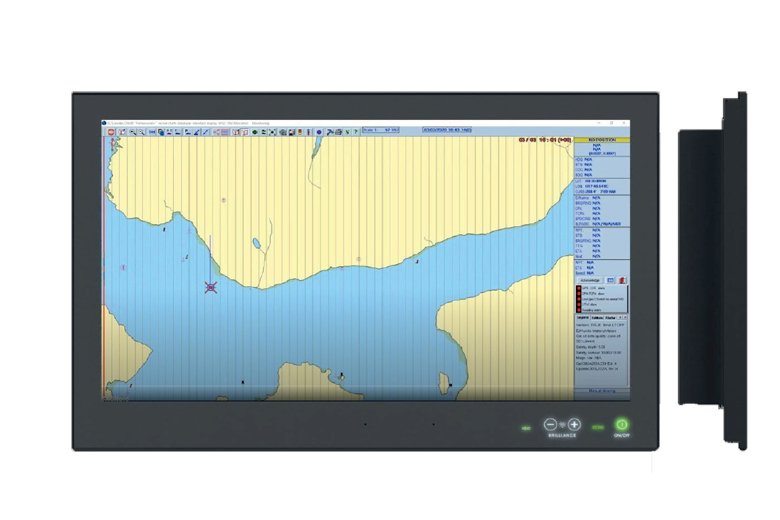

CAIM ECDIS900
Born from the pre-existing MARIS ECDIS-900, CAIM ECDIS900 is an IMO-type approved navigation system, designed for use aboard SOLAS vessels subject to ECDIS carriage mandates.
With a standard Windows 10 interface making its use very intuitive, the ECDIS900 can be delivered with a 19”, 24” or 27” display and comprehends, in addition to mandatory ECDIS features, the most comprehensive set of additional navigation functions.
With latest generation hardware with WIN10, Glass Display Control, LED Backlight Technology, full dimming and multipower
Tools
Advanced route planning and optimization tools, with special purpose module
Charts
Supports ENCs, ARCS, Professional+ ,
AIO (Admiralty Information overlay)
AIO (Admiralty Information overlay)
Approvals
CE, Wheelmark (EU) and IEC 60945, fully compliant with the following Regulations/Standards: Regulation (EU) 2021/1158 Item no.
MED4.30 SOLAS 74as amended, Regulations V/18, V/19, V27 & X/3, IMO Res. A.694(17), IMO Res. MSC.36(63), imo Res.97(73), IMO Res
MED4.30 SOLAS 74as amended, Regulations V/18, V/19, V27 & X/3, IMO Res. A.694(17), IMO Res. MSC.36(63), imo Res.97(73), IMO Res
Hardware
Display: Hattelland X series Gen 2
Processore: IntelQ170 I5 6500TE
Hard Drive: 240 GB SSD
Memory : 8GB RAM
Operating system: Windows 10
Power supply: AC/DC
Ports: 4x USB
5X Ethernet
8X Serial
Processore: IntelQ170 I5 6500TE
Hard Drive: 240 GB SSD
Memory : 8GB RAM
Operating system: Windows 10
Power supply: AC/DC
Ports: 4x USB
5X Ethernet
8X Serial
